In the design of advanced Minimally Invasive Surgical (MIS) tools, engineers rarely rely on a single material. The distal end of a device often requires the superelasticity of Nitinol (NiTi) to navigate tortuous anatomy, while the proximal shaft requires the pushability and cost-effectiveness of Stainless Steel (SS304/316L). This creates a classic engineering dilemma: How do you securely join these two metallurgically incompatible materials?

Traditional methods like medical-grade adhesives (glues) often fail under high-torque or high-temperature sterilization environments. Soldering introduces foreign flux materials that complicate biocompatibility.

Precision Laser Welding is the industry standard for high-performance medical assemblies. However, welding dissimilar metals—specifically Nitinol to Stainless Steel—is notoriously difficult due to the formation of brittle intermetallic compounds.

At Manners Technology, we specialize in overcoming these metallurgical challenges. This article explores the science, the pitfalls, and the DFM (Design for Manufacturing) strategies for robust laser welded assemblies.

1. The Physics of the Challenge: Why is it so hard?

Welding two pieces of Stainless Steel together is straightforward: they have the same melting point and crystal structure. But mixing Titanium (from Nitinol) and Iron (from Stainless Steel) in a weld pool is a recipe for disaster if uncontrolled.

The "Brittle" Problem (Intermetallics)

When NiTi and SS304 are melted together, the Titanium and Iron atoms react to form Intermetallic Compounds (such as Fe₂Ti  and FeTi ).

· Characteristics: These compounds are extremely hard but incredibly brittle—similar to glass.

· Failure Mode: Under tensile stress or bending (common in catheter use), cracks initiate instantly within these brittle zones, causing catastrophic joint failure.

Melting Point Mismatch

· Nitinol Melting Point: ~1310°C

· 304 Stainless Steel Melting Point: ~1400-1450°C

The Risk: Inconsistent energy absorption can lead to one material vaporizing before the other has fully melted, creating voids (porosity) in the joint.

2. Advanced Laser Welding Strategies

To solve the "brittle weld" problem, Manners Technology employs specific process controls that go beyond standard welding.

A. Precise Heat Control (Pulse Shaping)

Continuous Wave (CW) lasers often input too much heat, creating a large mixing zone where brittle compounds thrive. We use Pulsed Nd:YAG or Fiber Lasers with micro-second control.

· Concept: By strictly limiting the pulse duration and energy, we minimize the size of the Heat Affected Zone (HAZ).

· Benefit: This reduces the volume of mixed material, keeping the brittle intermetallic layer thin enough that it doesn't compromise the structural integrity of the joint.

B. Geometry Management

How the parts fit together is just as important as the laser beam.

· Butt Joint: Two tubes meeting end-to-end. This is the hardest to weld for dissimilar metals and usually requires an intermediate sleeve.

· Lap Joint: One tube fits inside the other (e.g., Nitinol wire inside an SS tube). This is the preferred geometry for medical devices. It provides a larger surface area for the weld and allows for mechanical crimping assistance if needed.

C. The Use of Interlayers (The "Secret Sauce")

In extreme cases, we introduce a third material—such as Nickel or Tantalum—as an interlayer between the Nitinol and Stainless Steel. This intermediate layer acts as a buffer, mixing compatibly with both sides and preventing the formation of Fe-Ti brittle phases.

3. Laser Welding vs. Traditional Joining Methods

Why switch to laser welding if you are currently using glue? Here is the comparison data for medical device validation.

Key Takeaway: For Endoscope Bending Sections [[LINK:index:url:text]] or control wires that must endure thousands of actuation cycles, glue is a liability. Laser welding is the only reliable option.

4. Quality Control: How We Verify the Weld

In medical manufacturing, "it looks good" is not a validation. We employ rigorous testing protocols to ensure every micro-weld meets ISO standards.

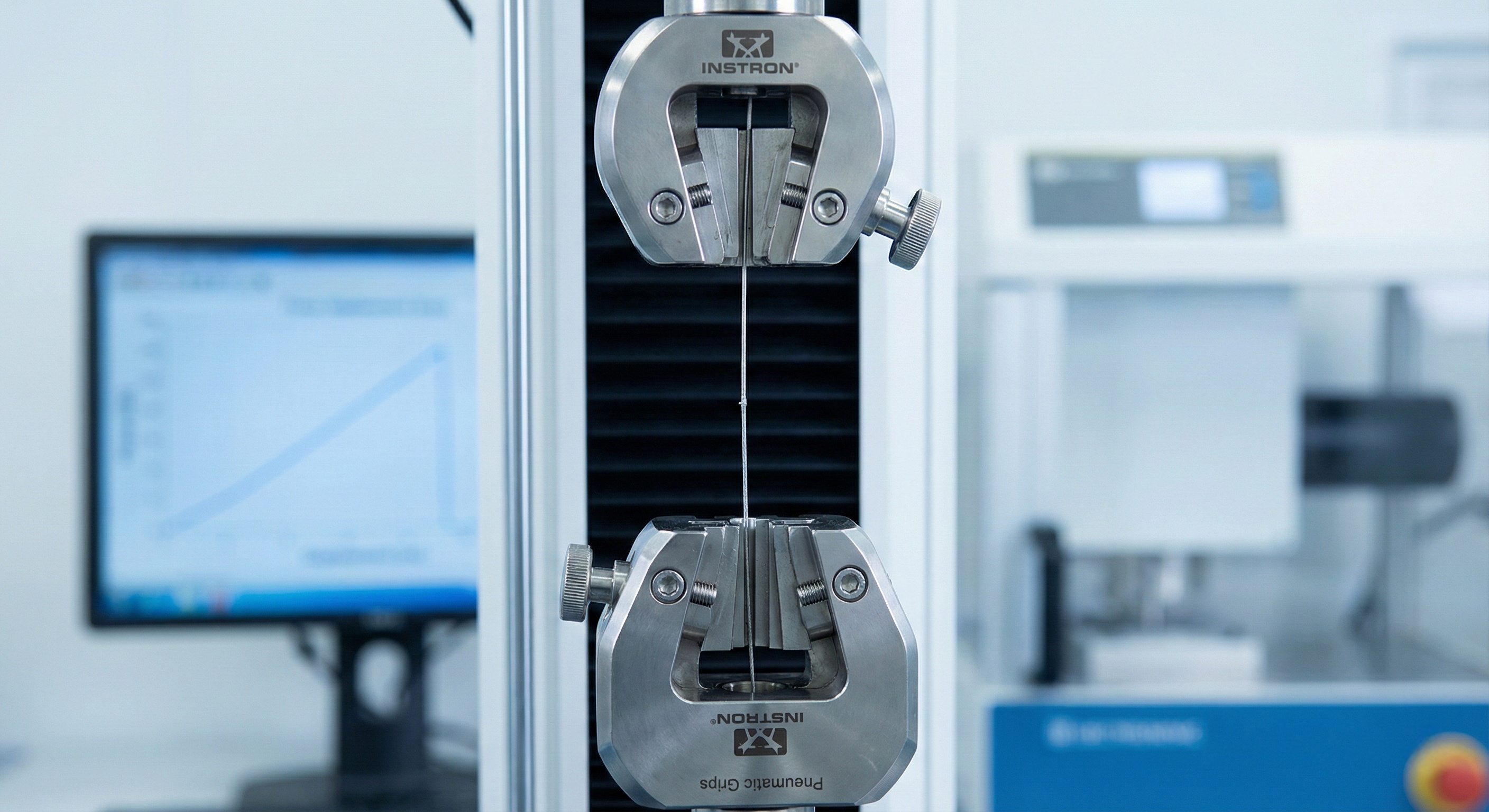

1. Tensile Strength Testing (Pull Test)

We clamp the Nitinol side and the Stainless Steel side and pull until destruction.

· Acceptance Criteria: The failure should ideally occur in the base material (the wire breaks), NOT at the weld joint. If the weld snaps, the process parameters need adjustment.

· Data: We regularly achieve pull strengths exceeding 90% of the parent material's strength.

2. Micro-Sectioning (Metallographic Analysis)

We cut the welded part, polish the cross-section, and examine it under high-magnification microscopes.

· What we look for: Cracks, Porosity (gas bubbles), and the flow of the melt pool. This confirms penetration depth—ensuring the laser actually fused the inner wire, not just the outer tube.

3. Corrosion Testing

Since welding alters the surface chemistry, we perform salt spray tests to ensure the weld zone does not rust. (This is where Passivation or Electropolishing [[LINK:index:url:text]] becomes a critical post-processing step).

5. DFM Guidelines: Designing for Laser Welding

To get the best results from our laser welding services, keep these design rules in mind:

· Rule #1: Tight Tolerances are Non-Negotiable - Laser beams are typically 0.05mm - 0.2mm in diameter. If the gap between your parts is larger than 10% of the material thickness, the laser will pass right through or cause the metal to "cave in." Guideline: For a Lap Joint, the clearance between the inner wire and outer tube should be less than 0.02mm (0.0008"). Precision Laser Cut Tubing [[LINK:index:url:text]] is essential here.

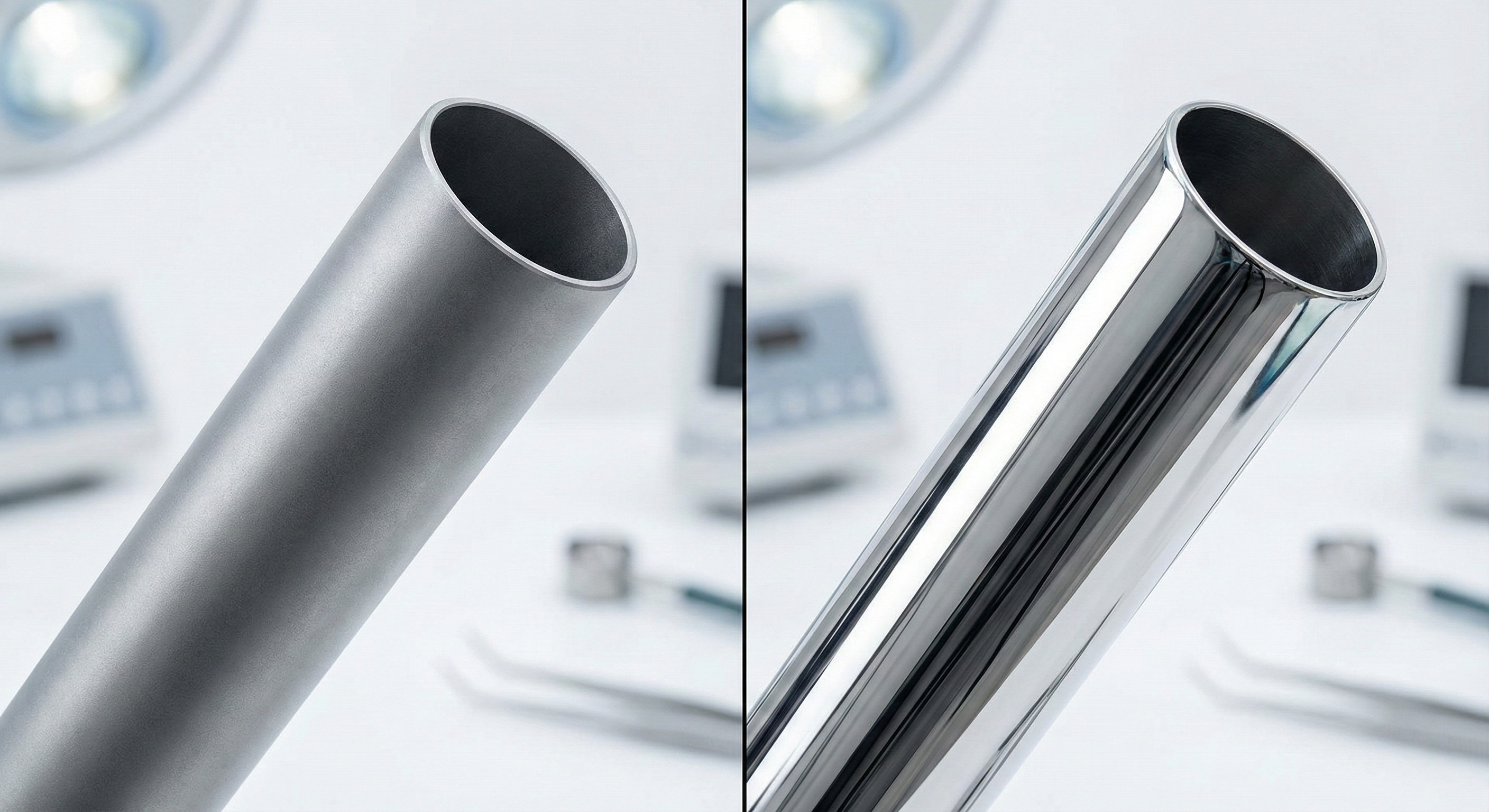

· Rule #2: Material Selection - SS304L / SS316L: Always specify "L" (Low Carbon) grades. High carbon content leads to carbide precipitation during welding, which causes cracking. Oxide-Free Nitinol: The black oxide layer on Nitinol acts as an insulator and contaminant. We recommend using centerless ground (shiny) Nitinol for the weld zone.

· Rule #3: Accessibility - The laser needs "Line of Sight." Ensure your design allows the laser beam to reach the joint at a 90° or 45° angle. Avoid hidden joints inside complex assemblies.

6. Applications in Your Product Line

Where is this technology applied in Manners Technology's production?

· Hypotube Assemblies: Joining a flexible Nitinol extension to a rigid Stainless Steel shaft for catheter systems.

· Endoscope Snake Bones: Welding the pull-wire anchor points to the articulated bending section.

· Biopsy Jaws: Attaching the machined jaw component to the actuation rod.

· Marker Bands: Welding Radiopaque markers (Platinum/Gold) onto stents or tubes.

Conclusion

Joining Nitinol to Stainless Steel is no longer an "impossible" engineering feat—it is a controllable, repeatable manufacturing process, provided you have the right technology and expertise. By controlling pulse energy, optimizing joint geometry, and understanding the metallurgy of intermetallics, Manners Technology delivers welded assemblies that withstand the rigors of clinical use. We don't just supply the parts; we deliver the finished, tested solution.

Need to validate a complex weld? Send us your CAD files or samples. Our welding engineers will perform a feasibility study and provide tensile test data for your specific material combination.
