In the high-stakes world of medical device manufacturing, the "surface" is not just about aesthetics—it is a functional interface. For a biopsy needle entering soft tissue or a laser-cut hypotube navigating a tortuous vascular path, the surface finish dictates friction coefficient, corrosion resistance, and biocompatibility.

Design engineers are often faced with a critical choice during the DFM (Design for Manufacturing) phase: Should we specify passivation or electropolishing (EP)? While both processes aim to enhance the corrosion resistance of stainless steel (primarily 304 and 316L series), their mechanisms, outcomes, and costs differ fundamentally. This guide provides a deep technical divergence into both processes, referencing ASTM standards and real-world manufacturing data to help you make the correct specification for your medical components.

1. The Chemistry of "Stainless": Why Surface Finish Matters

To understand the difference between passivation and electropolishing, we must first understand why stainless steel resists rust. It is not the steel itself, but a microscopic "passive layer" of chromium oxide (Cr2O3) that forms on the surface when the chromium in the alloy reacts with oxygen. This passive layer is self-repairing but fragile. During CNC machining, laser cutting, or grinding, free iron (Fe) is often brought to the surface, or contaminants are embedded into the metal grain. If left untreated, these "free iron" particles prevent the formation of a uniform chromium oxide layer, leading to rouge (rust) and potential device failure.

Both passivation and electropolishing aim to maximize this chromium oxide layer and remove free iron, but they achieve it through vastly different physical and chemical means.

2. Passivation: The Chemical Cleaning Standard (ASTM A967)

What is Passivation?

Passivation is strictly a chemical cleaning process. It does not change the macroscopic physical appearance of the part, nor does it alter the surface roughness (Ra) or dimensional tolerances. It is designed solely to remove surface contaminants (free iron, machining oils) to allow the natural passive layer to form.

The Process

According to ASTM A967, the standard specification for chemical passivation, the process involves:

· Cleaning/Degreasing: Removing organic soils and oils.

· Acid Immersion: Submerging the part in an acid bath.

· Citric Acid: Growing in popularity due to environmental safety and effectiveness.

· Nitric Acid: The traditional method, often used with sodium dichromate for faster oxidation.

· Rinse & Dry: Critical to prevent acid spotting.

Limitations of Passivation

The most critical limitation for medical engineers to understand is that passivation does not remove metal.

· No Burr Removal: If your laser-cut tubing [[LINK:Laser Cut Tubing]] has micro-burrs or dross from the cutting process, passivation will clean the burrs, but they will remain attached.

· No Ra Improvement: If a machined part has a roughness of Ra 0.8µm, it will still be Ra 0.8µm after passivation.

When to Use Passivation:

• For structural components where surface friction is not critical.

• When dimensional tolerances are extremely tight (±0.0001) and no material removal is permitted.

• For lower-cost applications requiring basic corrosion resistance.

3. Electropolishing: The "Reverse Plating" Method (ASTM B912)

What is Electropolishing?

Electropolishing (EP) is an electrochemical process often described as "reverse plating." Instead of depositing metal onto a surface, it removes metal ion by ion. It is controlled by ASTM B912.

The Mechanism

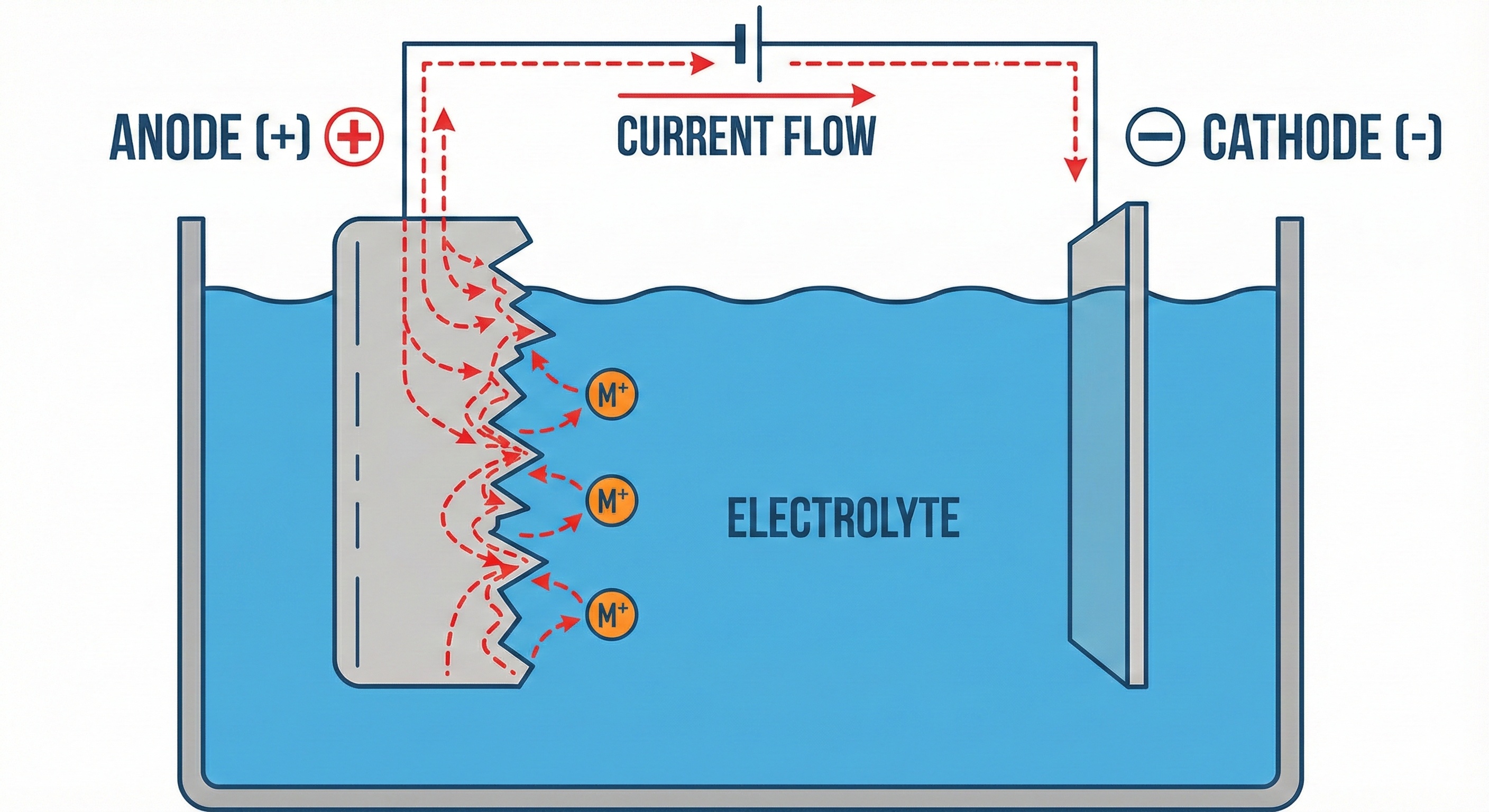

The medical component (e.g., a needle) acts as the anode (+). It is submerged in a temperature-controlled electrolyte bath (typically a mix of sulfuric and phosphoric acid). When a DC current is applied, metal ions are dissolved from the surface. Crucially, the current density is highest at the "peaks" of the surface profile. This means the process attacks the high points (micro-burrs, jagged edges) faster than the "valleys."

Key Engineering Benefits of Electropolishing

A. Significant Ra Improvement (Smoothing)

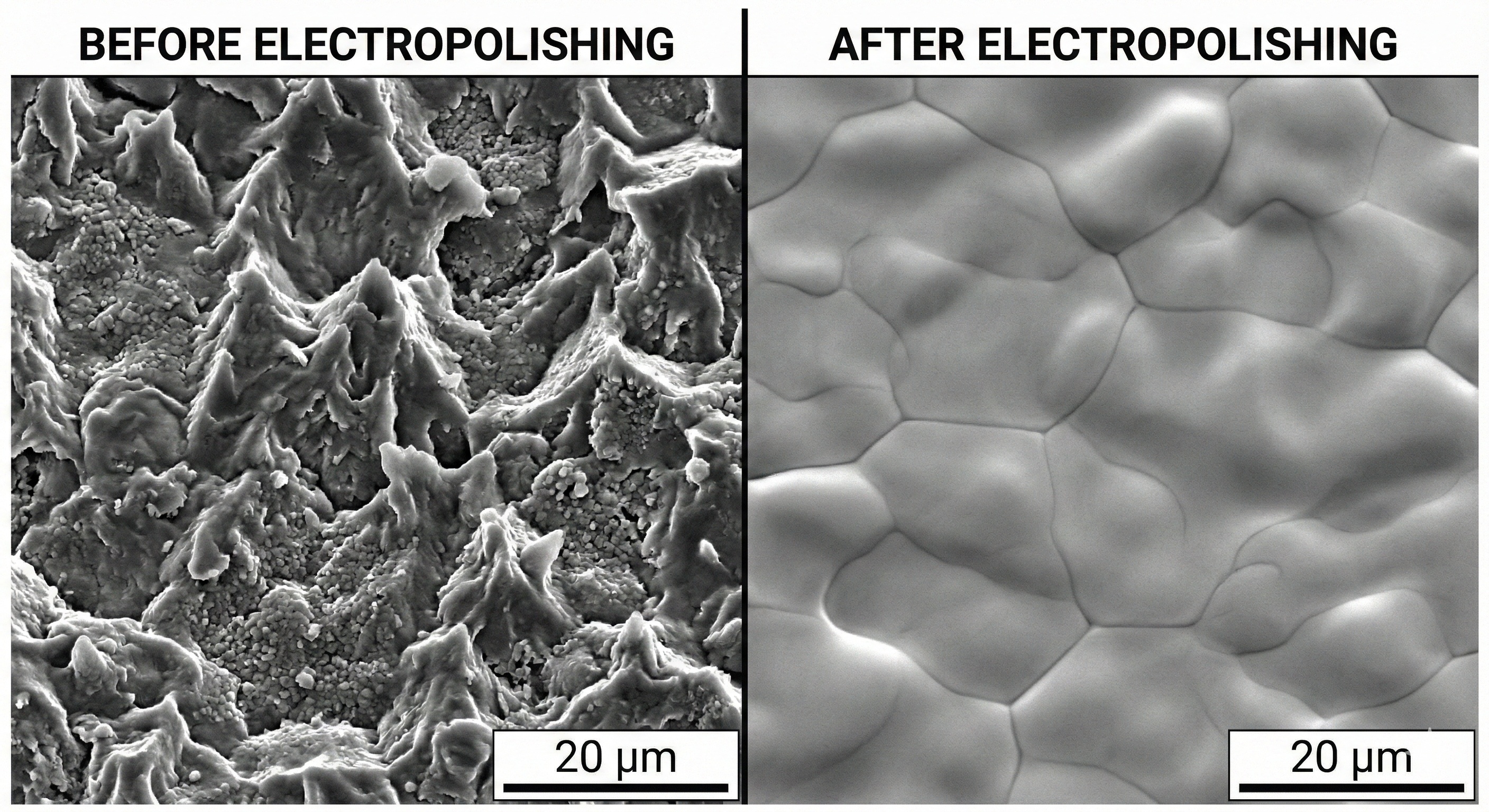

EP acts as a stress-relief polish. It can reduce the Micro-inch Finish (Ra) by 30% to 50%. Example: A ground needle tip with an Ra of 16 micro-inches can be reduced to 8 micro-inches, creating a mirror-like finish. Medical Impact: For introduction needles or guide wires, this reduced friction means lower insertion force and less patient trauma.

B. The "Super-Passive" Layer (Cr/Fe Ratio)

While passivation removes free iron, electropolishing selectively dissolves iron from the crystal lattice structure of the surface, leaving behind a surface extremely rich in chromium. Data Point: Standard passivation typically results in a Chromium-to-Iron (Cr/Fe) ratio of about 2:1. Electropolishing can achieve Cr/Fe ratios of 30:1 or higher. Result: Superior corrosion resistance that withstands rigorous sterilization cycles (autoclave) and saline environments better than passivated parts.

C. Micro-Deburring

For complex geometries like endoscope bending sections (snake bones) [[LINK:Endoscope Parts]], mechanical deburring is difficult. EP reaches into crevices and holes, dissolving microscopic burrs caused by laser cutting. This eliminates the risk of a metal burr detaching inside a patient's body.

4. Comparative Analysis: Which One to Choose?

To assist in your DFM decision-making, we have compiled this comparative matrix based on manufacturing data from Manners Technology.

5. Case Studies: Application in Medical Devices

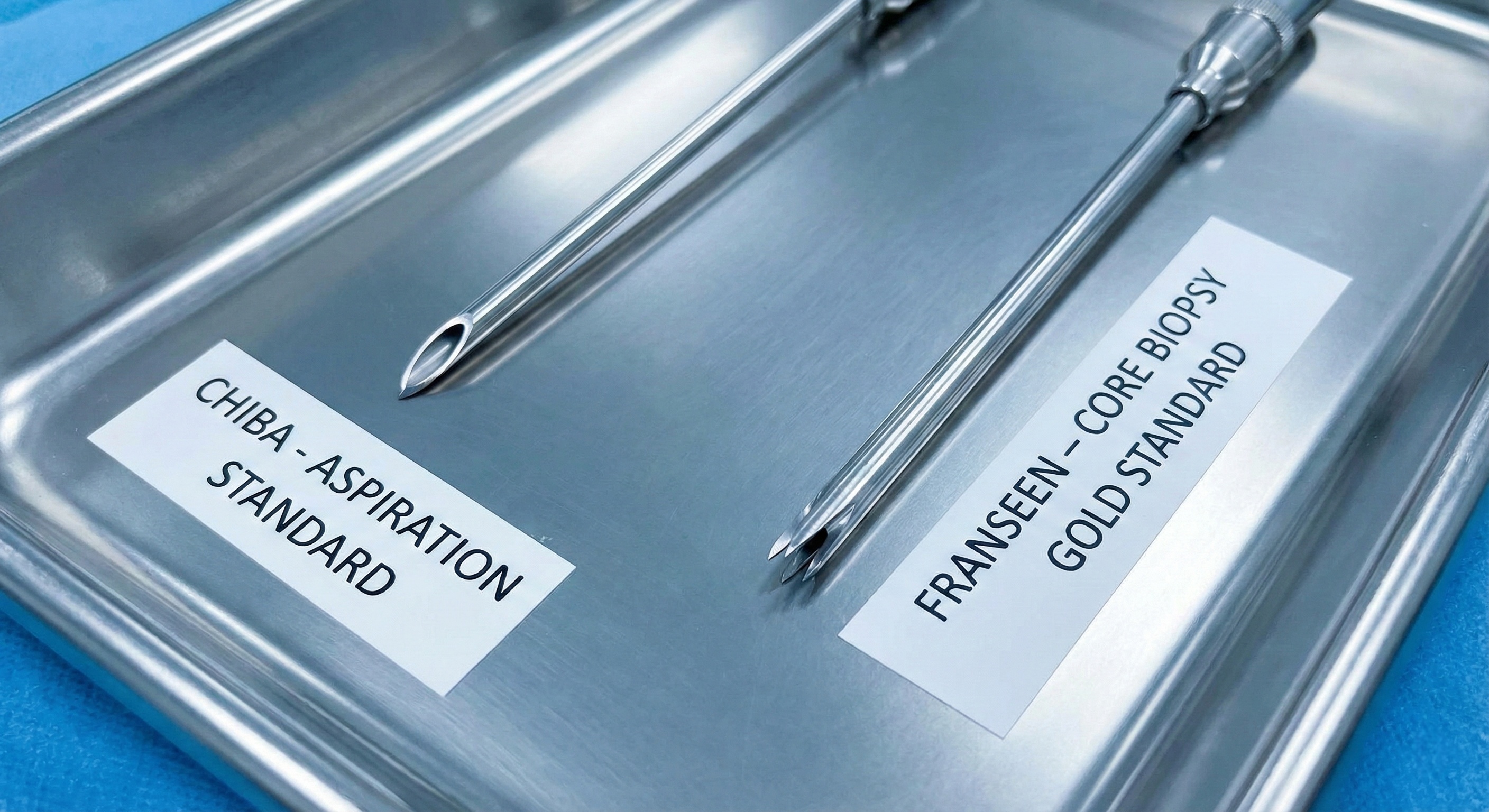

Scenario A: The Hypodermic Needle

Requirement: Low penetration force and a clean, sharp lancet tip. Solution: Electropolishing. Grinding creates a sharp edge but leaves microscopic "feathers" (burrs) on the tip. EP removes these feathers, chemically sharpens the point, and smoothens the cannula for painless insertion. See our needle capabilities: [[LINK:Medical Needle Manufacturing]]

Scenario B: Laser Cut Hypotube for Catheters

Requirement: A flexible metal tube with a spiral cut pattern. The laser cut edge has a heat affected zone (HAZ) and slight dross. Solution: Electropolishing. Mechanical polishing cannot reach the inside of the spiral cuts. EP fluid flows through the cuts, dissolving the dross and rounding the sharp edges of the cuts to prevent damage to internal polymer liners.

Scenario C: Internal Machine Parts

Requirement: A customized connector block inside a medical handle, never exposed to blood or tissue. Solution: Passivation. The part requires corrosion protection to ensure longevity, but high gloss or ultra-low friction is unnecessary. Passivation is the cost-effective choice.

6. DFM: Designing for Electropolishing

If you decide to specify electropolishing for your custom components, you must account for the material removal in your drawings.

• Tolerance Stacking: EP typically removes 0.0002" to 0.001" (5 to 25 microns) of material per side. If your OD tolerance is ±0.0005, the machining target must be adjusted to account for this loss.

• Access Holes: For internal surfaces (ID) to be electropolished, there must be sufficient flow of electrolyte. Blind holes are notoriously difficult to electropolish evenly without custom cathodes.

• Weld Zones: Laser welding [[LINK:Laser Cut Tubing]] creates oxidation. EP is excellent for removing heat tint from weld zones, restoring the uniform base metal appearance.

Conclusion

The choice between passivation and electropolishing is a trade-off between performance and cost. For critical surfaces contacting tissue, blood, or requiring high-cycle fatigue resistance, electropolishing is the industry gold standard. For general corrosion protection of non-contact components, passivation remains a reliable, economical solution.

At Manners Technology, we offer both ASTM-compliant passivation and electropolishing lines in-house. This allows us to control the entire quality chain from CNC machining to the final surface finish.

Unsure which finish your design needs? Don’t guess. Upload your drawing for a complimentary DFM review. Our engineers will recommend the optimal finishing process based on your tolerance and application requirements.
