From pacemakers and cardioverter-defibrillators to insulin infusion systems and neuromodulation devices, all implantable medical devices rely on a dense network of precisely coordinated micro-components. Among them, metal hypotubes serve as the most critical yet inconspicuous structural elements. These thin-walled tubes provide pathways for electrical signals, mechanical power transmission, and micro-fluidic transport, ensuring that implantable systems can deliver therapeutic energy or drugs with extreme precision.

Without such micro-engineered tubular components, modern implantable systems would struggle to achieve miniaturization, mechanical reliability, and long-term stability inside the human body.

In contemporary implantable device development, metal hypotubes bridge the gap between macro-performance requirements and micro-manufacturing precision. Their tightly controlled circular lumen geometry supports device miniaturization while maintaining system stability—especially when working with long tubular components and advanced alloys such as high-nickel or titanium materials.

Balancing Strength, Flexibility, and Biocompatibility

One of the greatest challenges in implantable device engineering is striking the optimal balance among mechanical strength, deformation compliance, and biocompatibility. Hypotubes meet these requirements by leveraging materials such as 316L stainless steel, nickel-titanium (Nitinol), and medical-grade pure titanium. These materials provide flexibility for natural tissue movement, tensile strength, and corrosion resistance—ensuring the tube does not collapse, fracture, or fail.

In cardiac rhythm management devices, hypotubes protect and guide vital electrical pathways. In implantable drug-delivery systems, they form microfluidic channels for precise dosage control. Their superior biocompatibility minimizes long-term immune reactions, while surface treatments reduce impurity deposition and microbial adhesion—critical for devices that remain implanted for years.

The Engineering Challenge: Manufacturing at the Micron Level

1. Material Selection: Where Every Micron Begins

The performance of implantable hypotubes originates with the material itself. Each alloy impacts mechanical behavior, biocompatibility, deformation tolerance, and durability under sterilization cycles.

Materials include:

• 316L stainless steel for stable corrosion resistance

• Nickel-titanium alloy for shape-memory and superelastic components

• Titanium for long-term implants requiring exceptional fatigue resistance

At Manners Technology, each batch of base material undergoes strict verification to ensure homogeneity, micromechanical consistency, and purity—forming the foundation for precise downstream manufacturing.

2. Precision Forming: Shaping Metal at the Micron Scale

After material selection, the challenge shifts to forming thin-walled hypotubes using multi-stage cold drawing. Achieving ±5–10 µm dimensional tolerances is essential. Concentricity, uniform wall thickness, and surface integrity determine the final mechanical and fluid-transport performance.

Manners Technology applies:

• Intelligent real-time dimensional tracking

• Controlled-atmosphere annealing

• Stress-relief processing for later laser micromachining

3. Microfabrication: Where Structure Meets Function

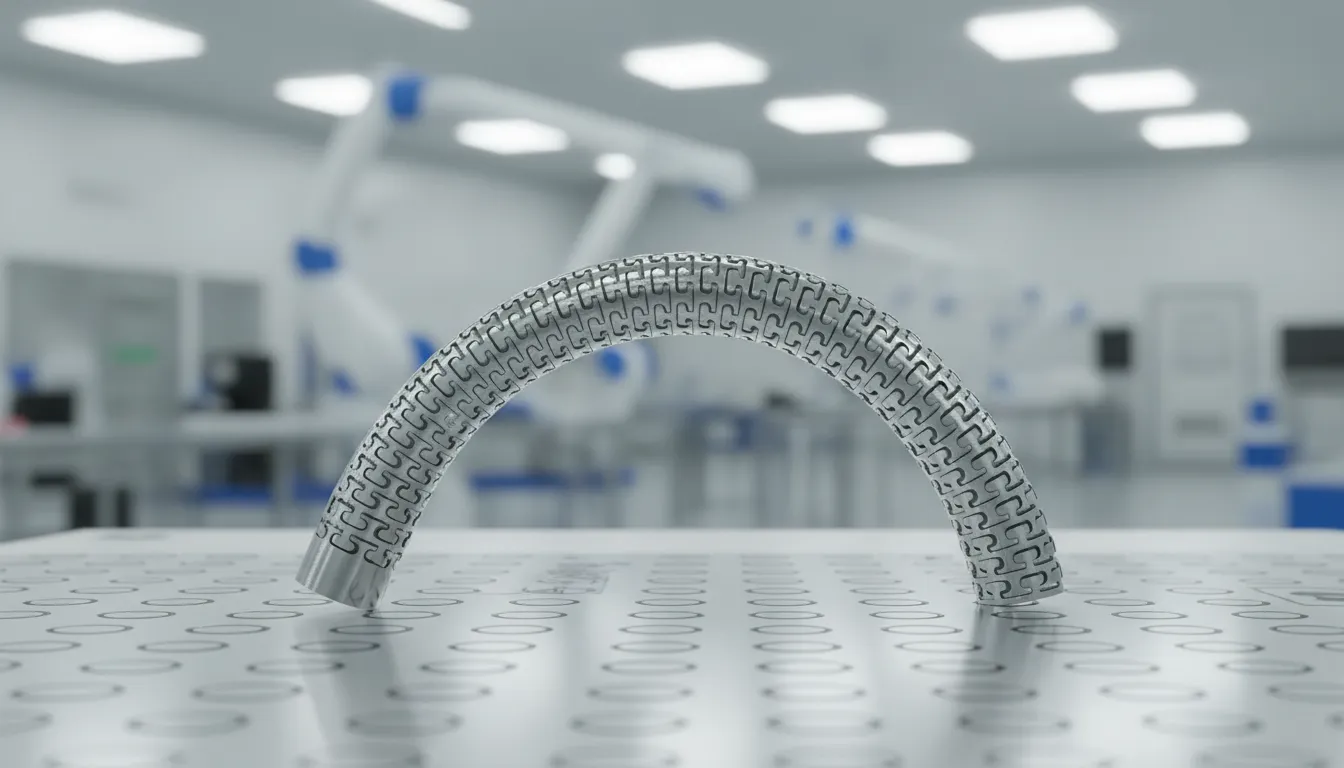

Advanced micromachining technologies—laser etching, EDM, and multi-axis micro cutting—enable engineers to create functional features such as:

• Spiral cuts

• Micro-slots

• Multi-lumen channels

These features grant flexibility, torque response, or fluid regulation capability. Five-axis integrated machining ensures that hypotubes match digital models without requiring secondary processing.

4. Surface Finishing and Treatment: Engineering at the Invisible Level

Surface quality directly affects function in medical devices. Finishing processes include:

• Electrochemical polishing

• Passivation

• Micro-burr removal

• Functional coating

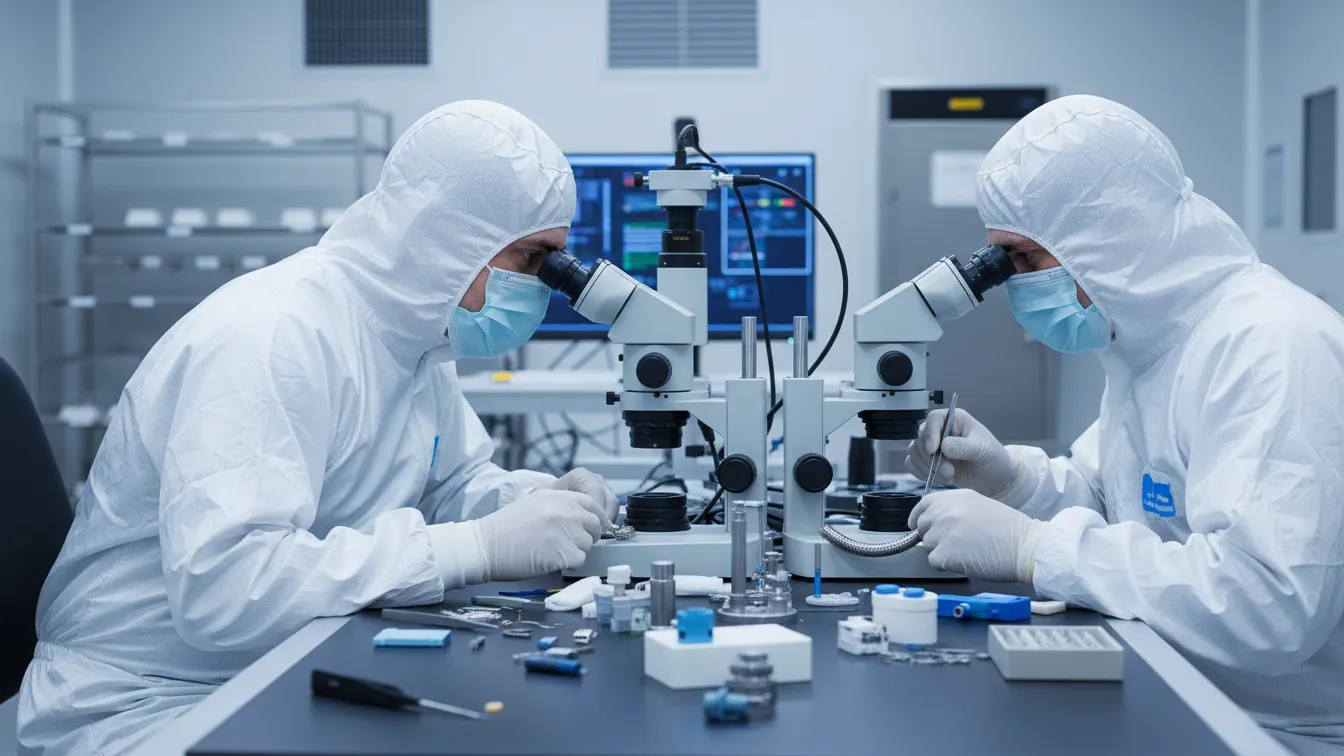

These treatments enhance corrosion resistance, smoothness, and bio-interface performance. Manners Technology uses cleanroom finishing and submicron metrology to ensure internal and external surfaces meet stringent clinical requirements.

Reliability That Defines Patient Outcomes

Every micron matters in implantable device manufacturing. Micron-level deviations may compromise:

• Insulin delivery flow resistance

• Electrical signal quality in pacing systems

• Torque transmission of interventional guidewires

Manners Technology integrates multi-axis CNC machining, laser micro-etching, and polished finishing to ensure dimensional consistency and structural reliability. Manufactured in temperature-controlled cleanrooms, their hypotubes maintain concentric geometry, smooth internal surfaces, and long-term mechanical durability.

The company collaborates closely with medical-device R&D teams to convert digital models into mass-producible components—accelerating prototype development and regulatory approval.
