A Complete Guide to Medical-Grade Stainless Steel: Choosing Between 304V, 316L and 316LVM

Though most of them might be aware of the basic properties of stainless steel, the difference between medical-grade and non-medical stainless steel is a leading factor in medical R&D. For medical device developers and engineers, it is essential to possess the skill of knowing the specifics of stainless steel materials to come up with safe, durable, and reliable devices.

Key Differences Between Medical and Non-Medical Stainless Steel

The main different between medical and non-medical stainless steel that result in varying performance of the devices and patient safety are as follows: bio compatibility and corrosion resistance.

Bio compatibility: How materials interact with the human body

Medical-grade stainless steel is the material that not only has to keep outstanding physical and mechanical properties but also be safe for long contact with human tissues and fluids. It must not cause allergic reactions, immune responses, or chronic cellular damage. Stainless steel 304, which is not bio compatible and thus, not suitable for a prolonged contact with body tissues or fluids, only offers good resistance to corrosion.

Corrosion resistance: One of the stabilizing factors of the human body over time

The devices that are implanted or have a long contact with body fluids must be resistant to corrosion caused by blood, salts, acids, or other body chemicals. The manufacturers of medical-grade stainless steel have this very specific aim that the steel should survive such severe conditions. Even if non-medical stainless steel is good for everyday use, it may corrode in such conditions resulting in device integrity and patient safety being compromised.

Understanding Common Stainless Steel Grades: 304, 304L, 304V, 316, 316L, and 316LVM

304 Stainless Steel: The commonly used non-medical steel grade

Composition: A mixture of 18% chromium and 8% nickel is provided that gives resistance to general corrosion.

Use: The areas of non-medical equipment, appliances, and kitchenware are the typical fields of its application.

Limitations: Its performance in chloride-rich environments such as human body fluids is quite limited; thus, 304 steel cannot be used for medical implants or devices that come into contact with blood or tissue.

304L Stainless Steel: A low-carbon version that features better welding characteristics

Composition: The reduced carbon content decreases the risk of inter granular corrosion after welding.

Applications: This product is found in the surgical instrument parts and catheter components that are welded but not resistant to severe corrosion.

Features: Despite the welding process, corrosion resistance is kept which makes it suitable for medical devices having stable performance.

304V Stainless Steel: 304 modified to have more suitable properties for medical micro applications

Composition & Process: 304 vacuum melting single crystal refined with less impurities than normal leads to not only corrosion resistance but also uniformity of the material.

Applications: Precision instruments with moderate corrosion resistance such as surgical instruments, catheters, and medical devices.

Limitations: It shows good performance among external surgical tools, however, it is not good for long-term implants.

316 Stainless Steel: One of the most commonly used medical-grade steels but without long-term implants

Composition: 16-18% chromium, 10-14% nickel, 2-3% molybdenum. Molybdenum addition is the main factor behind the resistance to pitting that is due to the chloride ion.

Applications: The material dientifies are surgical instruments and catheters with which fluids from the body have contact are the common uses.

Limitations: Although bio compatible, it lacks purity and precision of 316LVM and thus, the use is allowed only for short-term implants.

316L Stainless Steel: The low-carbon version that is the number one choice for implants

Composition: The carbon content reduction of 316 has been so drastic that inter granular corrosion is almost completely eliminated.

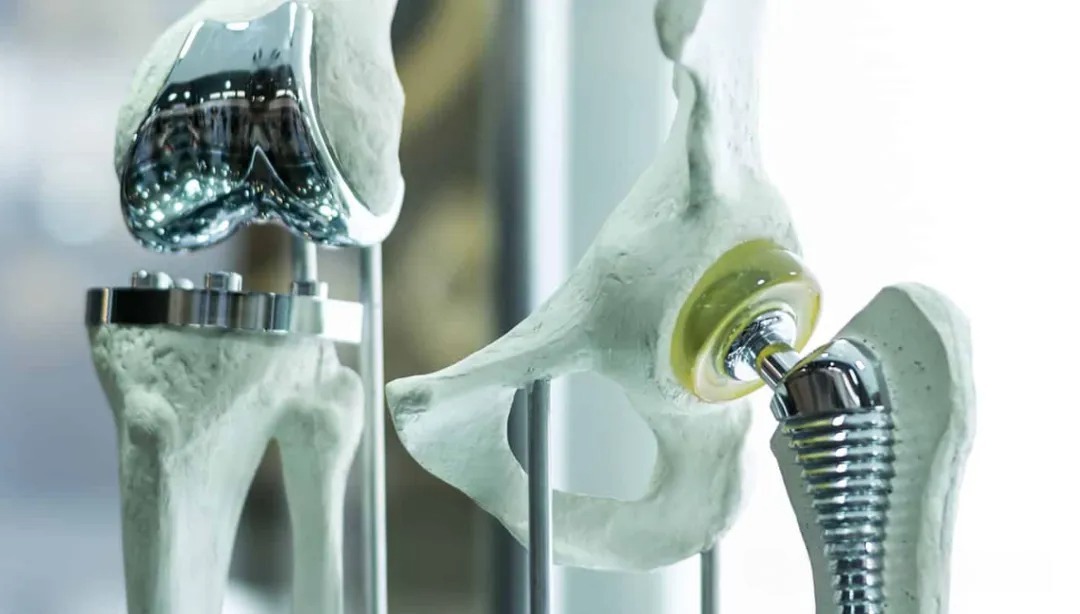

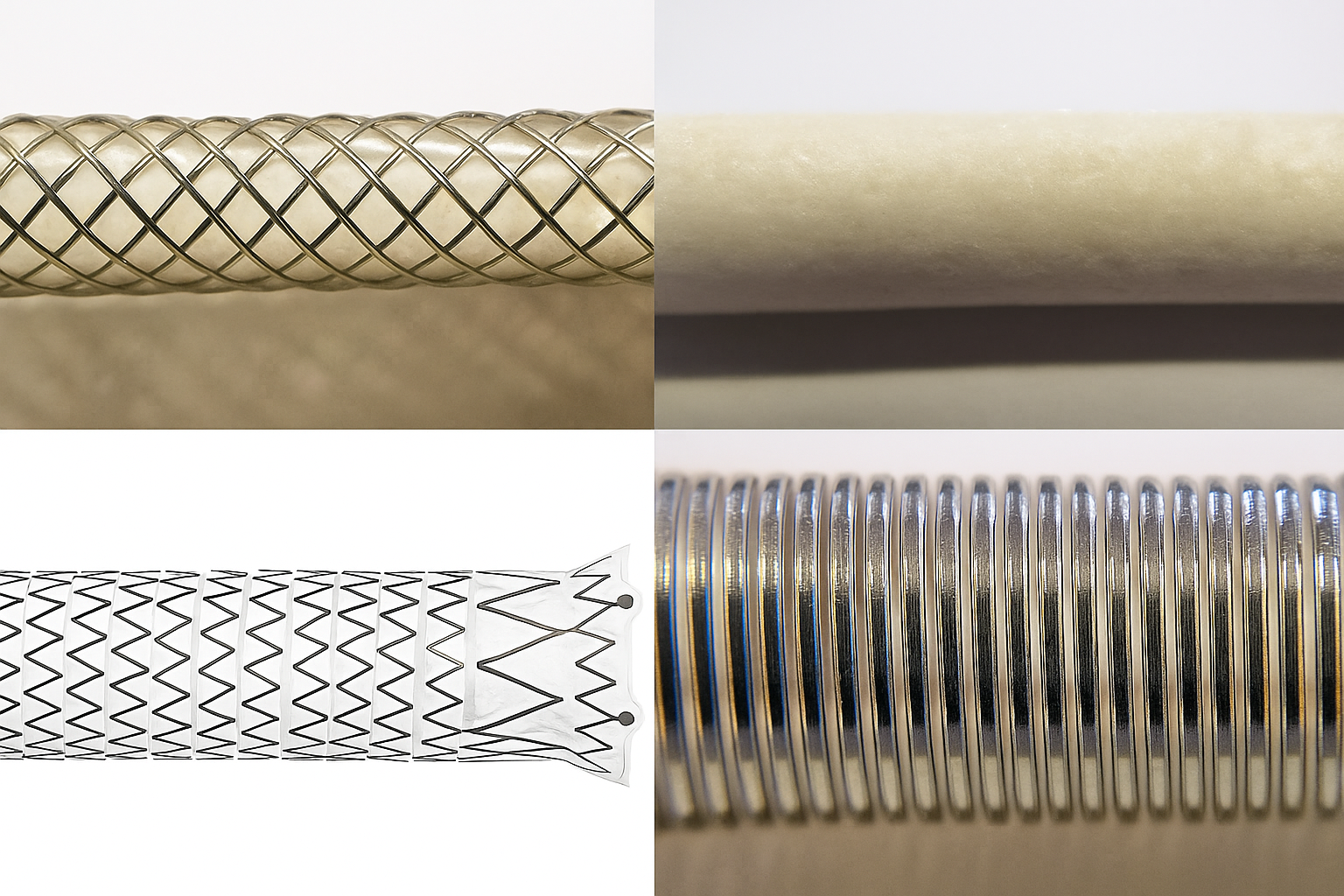

Applications: Vascular stents, artificial joints, pacemaker housings, and other long-term implants.

Benefits: It is the one that has a very high level of bio compatibility and is made for long-term devices that come into contact with blood and bodily fluids and is totally resistant to corrosion.

316LVM Stainless Steel: The highest quality for long-lived equipment

Composition & Process: In terms of bio compatibility, vacuum-melted 316L with extremely high purity that is free of such impurities as cause bio compatibility is the best.

Applications: Terrestrial devices of the spinal area, stents for the vascular system, and orthopedic implants which are long-term bearing.

Benefits: Along with better corrosion and fatigue resistance over 316L, it also achieves long-term stability, very low metal ion release, and immune reactions.

Choosing the Right Medical Stainless Steel: Safety, Performance, and Longevity

Besides resistance to corrosion and bio compatibility, the right choice of stainless steel also depends on mechanical load, device function and expected lifetime.

The Most Bio compatible and Most Corrosion-Resistant, As well as the Devices of Long-Term Stability in Body, 316L or 316LVM Should Be Utilized for Implantable Devices These Are (stents, Artificial Joints, Pacemaker Housings, ETC.).

 Repairs of the Non-implantable Devices (surgical Instruments, catheters, Diagnostic tools) Are Performed by 304L or 304V, Which Are Strong, corrosion-resistant, and Can Be Used for Low-risk Medical Applications

By correctly matching the stainless steel grade to the device requirements, developers not only keep the device reliable but also ensure patient safety.

Practical Considerations for Medical Device Developers

Think of these things while designing medical devices

Length of contact: Long-term implants require the purest and most corrosion-resistant materials.

Mechanical load: Devices under repeated stress or fatigue should be made of materials with high fatigue strength.

Environmental exposure: Blood, saline, and acid will require the material to be of superior corrosion resistance.

Regulatory compliance: Always select materials that meet bio compatibility standards and have other certifications related to the medical field.
